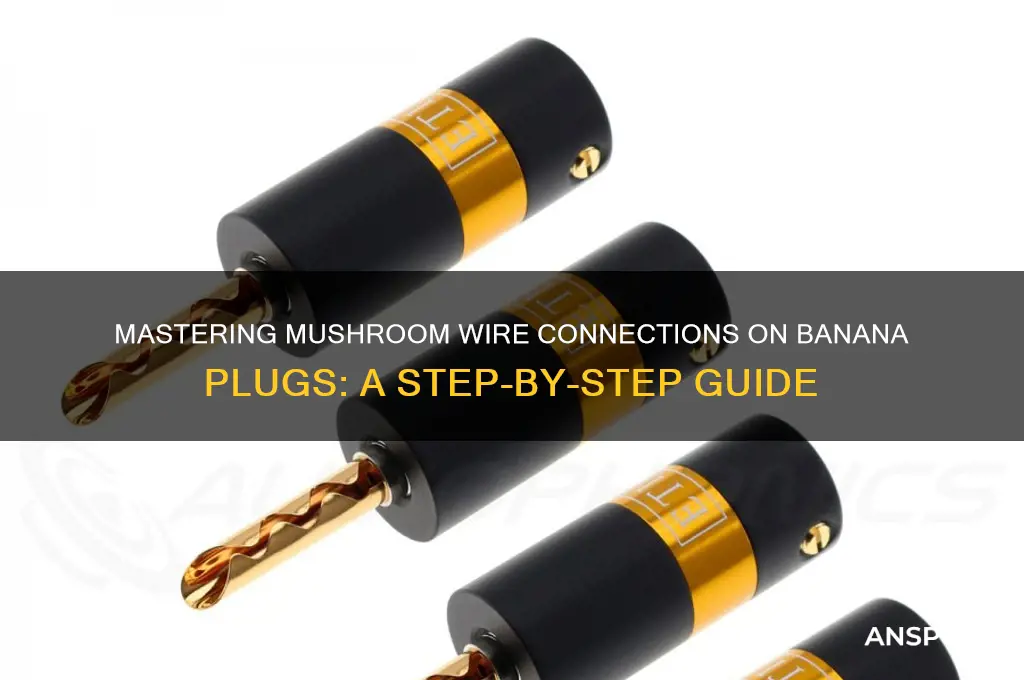

Mushrooming wire on banana plugs is a crucial technique for creating secure and reliable connections in audio, electrical, or testing setups. This process involves flaring the end of a stranded wire into a mushroom-like shape before inserting it into the banana plug, ensuring maximum contact area and conductivity. Properly mushroomed wires reduce the risk of loose connections, signal loss, or overheating, making it an essential skill for DIY enthusiasts, technicians, and professionals alike. By following the right steps and using the appropriate tools, such as wire strippers and crimping pliers, anyone can master this technique to enhance the performance and longevity of their wired connections.
| Characteristics | Values |
|---|---|
| Purpose | To create a secure and reliable connection between wires and banana plugs, often used in audio, automotive, or electrical applications. |
| Tools Required | Wire strippers, soldering iron, solder, heat shrink tubing (optional), banana plugs, wire (typically stranded copper). |
| Wire Type | Stranded copper wire is recommended for flexibility and durability. |
| Wire Gauge | Match the wire gauge to the banana plug's specifications (commonly 12-18 AWG). |
| Stripping Length | Strip approximately 1/4" to 1/2" (6-12 mm) of insulation from the wire end. |
| Soldering | Apply a small amount of solder to the exposed wires, ensuring they are tinned evenly. |
| Mushrooming Technique | Spread the stranded wires into a mushroom shape to increase surface area for better contact. |
| Insertion into Plug | Insert the mushroomed and tinned wires into the banana plug's opening. |
| Securing the Wire | Solder the wires inside the banana plug, ensuring a strong connection. |
| Heat Shrink Tubing | Optional: Apply heat shrink tubing over the soldered joint for insulation and strain relief. |
| Testing | Test the connection for continuity and ensure it is secure before use. |
| Safety | Always work in a well-ventilated area when soldering and avoid touching hot components. |
| Applications | Commonly used in speaker wires, test leads, and other electrical connections requiring frequent plugging and unplugging. |
| Advantages | Provides a reliable, low-resistance connection that is easy to connect and disconnect. |
| Disadvantages | Requires soldering skills and proper tools; incorrect installation can lead to poor connections. |
Explore related products
What You'll Learn
- Preparing the Mushroom Wire: Strip insulation, tin wire ends, and ensure proper length for secure connection
- Inserting Wire into Plug: Straighten wire, insert into banana plug hole, and ensure snug fit
- Soldering Techniques: Apply flux, heat wire and plug, then solder for a strong bond
- Securing with Set Screw: Tighten set screw onto wire to prevent loosening or disconnection
- Testing the Connection: Verify conductivity and stability before use in audio or electrical systems
Preparing the Mushroom Wire: Strip insulation, tin wire ends, and ensure proper length for secure connection
To begin preparing the mushroom wire for connection to banana plugs, start by stripping the insulation from the wire ends. Using a wire stripper, carefully remove approximately 1/4 to 1/2 inch of insulation, ensuring not to damage the wire strands. This exposed section will be crucial for tinning and creating a secure connection. It’s essential to strip only the necessary amount to maintain the wire’s integrity while providing enough exposed conductor for the next steps.
Next, tin the exposed wire ends to improve conductivity and solderability. Heat your soldering iron and apply a small amount of rosin-core solder to the tip to clean it. Then, touch the solder to the exposed wire strands, allowing the heat to melt the solder and coat the wires evenly. Avoid using too much solder, as excess can lead to a bulky connection. Properly tinned wire ends should appear shiny and smooth, with the strands held together by the solder.
After tinning, ensure the wire is the correct length for a secure connection to the banana plug. Measure the distance from the stripped end to the point where the wire will be inserted into the plug, typically leaving enough length to wrap around the terminal screw or clamp securely. Trim any excess wire with cutters, ensuring the tinned end remains intact. A precise length ensures a snug fit without unnecessary strain on the connection.
Finally, inspect the prepared mushroom wire to confirm it meets the requirements for a reliable connection. The stripped insulation should be clean and free of fraying, the tinned ends should be evenly coated without cold solder joints, and the overall length should align with the banana plug’s specifications. Proper preparation at this stage is critical for achieving a strong, durable connection that minimizes resistance and ensures optimal performance.
