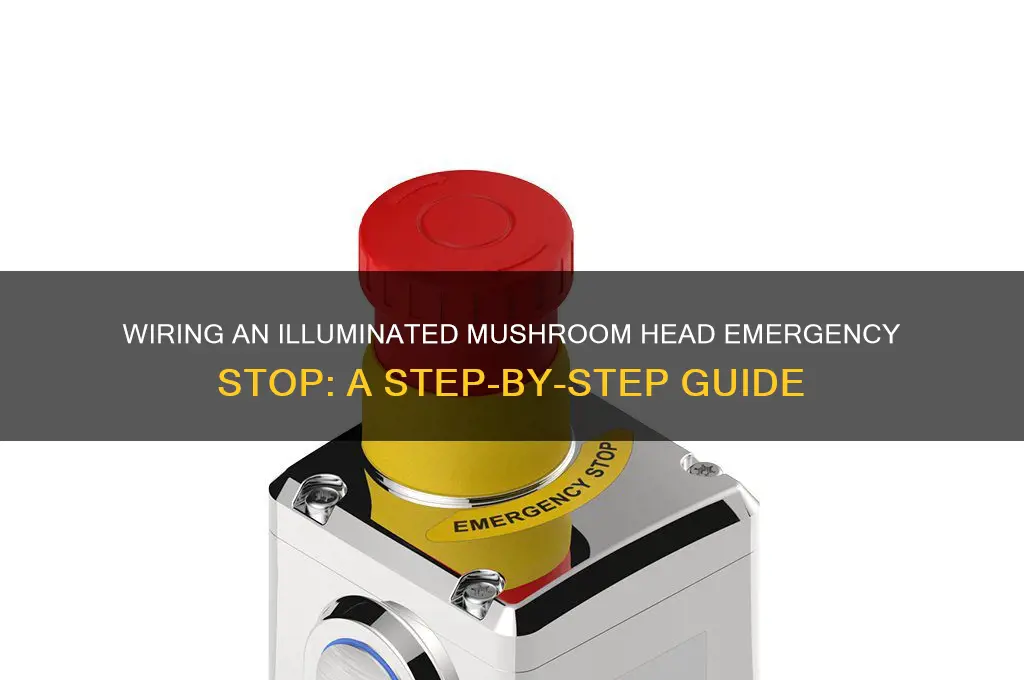

Wiring an illuminated mushroom head emergency stop button is a critical task in industrial and machinery safety systems, ensuring immediate shutdown capabilities in emergencies. This process involves connecting the button to a power source, typically a control circuit, while integrating the illumination feature to provide visual feedback of its operational status. Key steps include identifying the correct terminals for the normally closed (NC) contacts, which open the circuit when the button is pressed, and wiring the LED indicator to a separate circuit for continuous power. Proper grounding and the use of appropriate wire gauges are essential to ensure reliability and compliance with safety standards. Understanding the wiring diagram and following manufacturer guidelines is crucial to avoid malfunctions and maintain the effectiveness of this vital safety device.
Explore related products
What You'll Learn
Gather Materials and Tools
Before you begin wiring an illuminated mushroom head emergency stop button, it’s essential to gather all the necessary materials and tools to ensure a smooth and efficient process. Start by acquiring the emergency stop button itself, which should be an illuminated mushroom head type. Ensure it is rated for your specific application and complies with safety standards such as IEC 60947-5-5. Check that the button includes a built-in LED indicator for illumination, typically powered by 24V DC or 120V AC, depending on your system requirements.
Next, you’ll need wiring components, including appropriately sized wires for power and control circuits. Use multi-stranded copper wire with insulation suitable for your operating environment (e.g., PVC for general use or silicone for high-temperature areas). Ensure you have enough wire length to connect the button to your control panel or power source. Additionally, gather wire connectors such as crimp terminals, wire nuts, or screw terminals, depending on your wiring method and the button’s connection type.
For power supply, obtain a DC or AC power source that matches the voltage requirements of the illuminated button. If using a 24V DC system, ensure you have a compatible power supply unit. If working with a 120V AC system, verify that the power source is properly grounded and meets safety regulations. Include a fuse or circuit breaker to protect the circuit from overcurrent, selecting the appropriate rating based on the button’s specifications.
Tools are equally important for this task. Gather a wire stripper to remove insulation from the wires without damaging the conductors. A screwdriver set (flathead and Phillips) will be needed to secure the button to its mounting panel and connect terminals. If your button requires crimped connections, a crimping tool is essential. Additionally, have a multimeter on hand to test voltage, continuity, and proper wiring before energizing the circuit.
Finally, prepare mounting hardware such as screws, nuts, and washers to securely attach the emergency stop button to its designated panel or surface. Ensure the hardware is compatible with the button’s mounting holes and the material of the panel. Optionally, consider using a label maker to clearly mark the button and its wiring for future reference. With all materials and tools gathered, you’ll be well-prepared to proceed with wiring the illuminated mushroom head emergency stop button safely and effectively.
Microdosing Mushrooms: Legal or Not?
You may want to see also
Strip and Prepare Wires
Before you begin wiring your illuminated mushroom head emergency stop button, proper wire preparation is crucial for a secure and reliable connection. This process involves stripping the insulation from the wire ends and ensuring they are ready for termination.
Here's a detailed breakdown of how to strip and prepare the wires effectively:
Gather Your Tools: You'll need a wire stripper suitable for the gauge of your wires. Wire strippers typically have markings indicating the wire gauge they accommodate. Using the correct size ensures you remove only the insulation without damaging the conductive core.
Identify Wire Gauge: Determine the gauge of your wires. This information is usually printed on the wire insulation or provided in the product specifications. Matching the wire stripper to the gauge is essential for a clean strip.
Stripping the Wires: Hold the wire firmly and position the appropriate gauge marking on the wire stripper around the wire. Apply gentle pressure and rotate the stripper around the wire. This will score the insulation. Carefully pull the stripper away from the wire, removing the stripped insulation segment. Repeat this process for all wires involved in the emergency stop button connection. Aim for approximately 1/4 inch to 3/8 inch of exposed wire, enough for a secure connection but not so much that it becomes unwieldy.
Inspect the Stripped Wires: Examine the stripped ends for any nicks or damage to the conductive strands. If any strands are broken or frayed, trim the wire slightly and re-strip it. Clean, undamaged wire strands are essential for a reliable electrical connection.
Tinning (Optional but Recommended): For enhanced connectivity and corrosion resistance, consider tinning the stripped wire ends. This involves applying a thin layer of solder to the exposed strands. Heat the wire end with a soldering iron and touch the solder to the wire until it melts and coats the strands. Allow the solder to cool completely before proceeding. Tinning prevents strand fraying and ensures a stronger connection to terminals.
Organize and Label: Keep your stripped and prepared wires organized, especially if dealing with multiple wires. Labeling each wire according to its function (e.g., "NC" for Normally Closed, "COM" for Common) will prevent confusion during the wiring process.
Remember, taking the time to strip and prepare your wires meticulously will contribute to a safe and functional emergency stop button installation.
Can Drug Dogs Sniff Out Magic Mushrooms?
You may want to see also
Connect the Illuminated Button
To connect the illuminated mushroom head emergency stop button, begin by identifying the terminals on the button itself. Typically, an illuminated emergency stop button has three or four terminals: one for the normally closed (NC) contact, one for the normally open (NO) contact, and one or two for the illumination LED. The NC contact is the primary connection for the emergency stop function, while the LED terminals provide power to the button’s illumination. Ensure you consult the button’s datasheet or manual to confirm the terminal designations, as they may vary by manufacturer.
Next, prepare the wiring by stripping the ends of the appropriate gauge wires and attaching them to the button’s terminals. Connect the NC terminal to the control circuit’s emergency stop input. This ensures that when the button is pressed, the circuit is interrupted, immediately halting machine operation. If your system uses a NO contact for auxiliary functions, connect it to the corresponding terminal. For the illumination, identify the LED’s polarity (usually marked as + and -) and connect the positive terminal to the power supply’s positive line, typically 24V DC, and the negative terminal to the power supply’s ground.
When wiring the illumination, ensure the voltage matches the LED’s specifications to avoid damage. If the button requires a specific current-limiting resistor, install it in series with the LED’s positive terminal. This resistor is crucial for preventing excessive current flow, which could burn out the LED. Double-check the resistor’s value using Ohm’s Law (V = I * R), where the voltage drop across the LED and the desired current determine the resistance needed.
After making the connections, secure the wires with cable ties or conduit to prevent accidental disconnection or damage. Ensure all connections are tight and insulated to avoid short circuits. Test the button’s functionality by pressing it to confirm the emergency stop function works and that the illumination turns on when power is applied. If the LED does not light, verify the polarity and resistor value, and check for loose connections.
Finally, integrate the emergency stop button into the overall machine safety system. Ensure it complies with relevant safety standards, such as IEC 60204-1 or NFPA 79, which dictate requirements for emergency stop circuits. Label the button clearly and ensure it is easily accessible in case of an emergency. Regularly inspect the wiring and button operation as part of routine maintenance to guarantee reliable performance.
Mushrooms: Superfood for Healthy Living
You may want to see also
Explore related products
Wire the NC Contacts
When wiring the Normally Closed (NC) contacts of an illuminated mushroom head emergency stop button, the primary goal is to ensure that the circuit is interrupted when the button is pressed, immediately cutting power to the machine or system. The NC contacts are typically used in safety circuits because they provide a fail-safe mechanism—if the wire is cut or the button is activated, the circuit opens, stopping the machine. Here’s a step-by-step guide to wiring the NC contacts effectively:
Begin by identifying the NC contacts on the emergency stop button. These are usually labeled as "NC" or indicated by a symbol showing a closed switch. The NC contacts are normally connected in the circuit, allowing current to flow until the button is pressed. Connect one terminal of the NC contacts to the power source or the input of the safety relay. This ensures that the circuit is complete when the button is not pressed. Use appropriate wire gauge and color coding (e.g., green and yellow for the safety ground) to maintain clarity and compliance with safety standards.
Next, connect the other terminal of the NC contacts to the input of the safety relay or the control device that monitors the emergency stop signal. This connection ensures that when the button is pressed, the NC contacts open, interrupting the circuit and triggering the safety relay to shut down the machine. Double-check that the wiring is secure and free from any loose connections, as a faulty connection could compromise the safety function.
Incorporate a series connection if multiple emergency stop buttons are used in the system. Wire the NC contacts of each button in series so that activating any one button will open the circuit and stop the machine. This configuration ensures that all emergency stops are effective regardless of which button is pressed. Label each connection clearly to avoid confusion during maintenance or troubleshooting.
Finally, test the NC contacts to ensure they function correctly. With the machine powered off, press the emergency stop button and verify that the NC contacts open, interrupting the circuit. Use a multimeter to confirm that the circuit is open when the button is pressed and closed when it is released. If the test fails, recheck the wiring for errors or loose connections. Properly functioning NC contacts are critical for the safety and reliability of the emergency stop system.
Preparing Pine Mushrooms: A Simple Guide
You may want to see also
Test and Secure Connections
Once you've wired the illuminated mushroom head emergency stop button according to the diagram and instructions, it's crucial to thoroughly test and secure all connections to ensure reliable operation. Begin by visually inspecting each wire connection to confirm they are tight and properly seated in their respective terminals. Loose connections can lead to intermittent functionality or complete failure, so use a screwdriver to snug down any terminal screws, being careful not to overtighten and damage the components. Pay special attention to the connections at the emergency stop button, the contactor or relay, and the power supply, as these are critical points in the circuit.
Next, perform a continuity test using a multimeter to verify that all wired connections are intact and free from breaks or shorts. Start by testing the main power lines to ensure continuity from the power source to the emergency stop button and then to the contactor or relay. Follow this by checking the control circuit, including the normally closed (NC) contacts of the emergency stop button, to confirm that the circuit is complete when the button is not pressed. If the multimeter shows no continuity or unexpected readings, recheck the wiring and connections for errors or loose terminals.
With the wiring confirmed, proceed to a functional test of the emergency stop system. Power on the machine or system and verify that the illuminated mushroom head lights up, indicating that power is reaching the button. Press the emergency stop button and observe whether the machine immediately halts operation and the illumination turns off, signaling that the NC contacts have opened the control circuit. Release the button and ensure the system remains in a safe state, requiring a manual reset if designed as such. Repeat this test several times to ensure consistent and reliable operation.
After confirming functionality, secure all connections to prevent accidental disconnection or damage. Use cable ties or wire looms to neatly organize and bundle the wires, reducing strain on the terminals and improving overall durability. For added protection, apply a small amount of thread-locking compound to the terminal screws, especially in high-vibration environments, to prevent them from loosening over time. Additionally, consider using heat shrink tubing or electrical tape to insulate exposed wire ends and terminal connections, minimizing the risk of short circuits.
Finally, label all wires and components clearly to facilitate future maintenance or troubleshooting. Use a label maker or durable tags to indicate the purpose of each wire (e.g., power, control, illumination) and its connection points. Document the wiring diagram and test results for reference, ensuring that anyone working on the system in the future can quickly understand its configuration. By thoroughly testing and securing the connections, you guarantee the emergency stop system will function as intended, providing a critical safety mechanism for operators and equipment.
Finding Mushroom Fields in Minecraft: Where Do They Spawn?
You may want to see also
Frequently asked questions
You will need a 3-wire system: one wire for the normally closed (NC) contact, one for the normally open (NO) contact (if applicable), and one for the illumination circuit, typically connected to the neutral or power source.
Connect one end of the illumination wire to the neutral or power source (depending on the button's design) and the other end to the corresponding terminal on the button. Ensure the circuit is complete for the light to function.
No, a 2-wire system is insufficient for an illuminated button. The third wire is necessary to power the illumination circuit independently of the safety contacts.
Verify that the NC contact is properly wired to the safety circuit and that the illumination circuit does not interfere with the safety function. Test the button to ensure it trips the system when pressed and that the light operates as intended.
